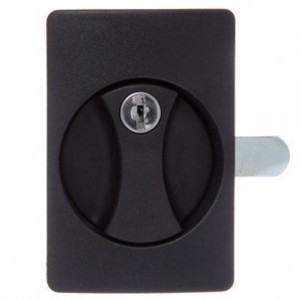

LF Flush Handle 3 Point Locking

Lock Focus Flush Locking Handle with 3 point locking

Suits metal hinged door cabinets requiring 3 point locking.

Features:

• suits hinged doors for 3 point locking
• suits panel thickness of  0.6mm to 1.6mm
• snap fit installation
• retrofits previous cast models
• zinc alloy die cast cam
• Silca LF31R keyway
• Key Series 60000 series master keyed - KD
• Finish black
• Movement 90° cam rotation
• Fixing built in snap clip fittings at both ends
• Cam type F1 -  22mm cam set back from inside face of lock

• The face of the lock is 105mm high x 72mm wide
