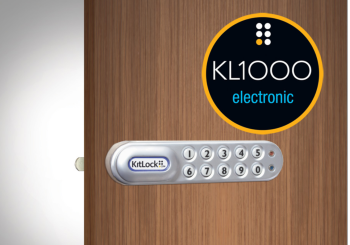

Codelock KL1000 Horizontal Right Handed Electronic Cabinet Lock

The New Codelocks Cabinet Lock opens up the possibilities for electronic access control. This simple electronic lock is an easy quick retrofit for cam locks supplied as standard on a wide range of lockers, cabinets and cupboards. It can easily be fitted to lockers or cabinets, which don’t have a locking device already fitted, giving the user immediate and simple keypad access without the need for keys.

This model is designed for horizontal fitment, with verticle latch throw and combination buttons printed 90° from the standard model.

Features include:

• Fit in schools, hospitals, care homes, nursery's, offices, workplace
• Simple 5 button keypad
• All codes are 4 digits long
• Battery power
• All parts/fixing/templates included
• Operating Instructions included
• Silver Grey finish
• Door Thickness    1-19mm
• Material    Zamac
• Finish    Silver Grey
• Power    2 x 1.5 volt AAA cells. Will provide in excess of 10,000 openings
• Low Battery    The lock will signal low battery to the user via the LED flashing. The lock will open 100 more times after this signal is initiated
• Battery failure override
• Should the batteries fail the lock can be opened by placing the + and - terminals of a PP9 battery on contact points surrounding the LED's and entering the master code. The batteries can then be replaced.

Technical  Information:

• Master code can: Open the lock/change the master code, set change, delete the sub master and user code.The master code can be used to set the lock into two different modes of operation.
• Multiple user code mode: In this mode the same user code can be repeatedly used to open the lock, this is the default setting.
• One time user code mode: In this mode the lock can be locked and opened once before the code is erased for the next user to enter a new code. This is typically used in lockers that will have multiple short term occupancy, such a gym lockers.
