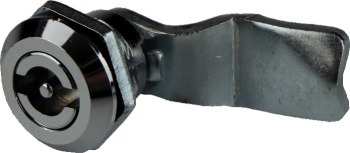

Enclosure Panel Cam Lock LG910

Access lock for sheetmetal cabinets, often used in machinery covers, meter boxes and electrical cabinets, generator covers, electronic & telecommunications enclosures.

Features include:

  • Operates by turning the drive key 90 degrees and locks the same way
  • Back fixing with locking nut
  • Supplied with rubber seal washer
  • 21.5mm thread diameter  and 19mm across flats of threaded body
  • Heavy duty cam, 45mm long cam from centre of fixing bolt to tip of cam
  • Chrome finish
  • Specially designed internal spring provides 1mm of compression for door seals on enclosures.
  • Cam does not rotate beyond a quarter turn due to the stop lip.



Drive key is not supplied with individual locks, and can be purchased from accessories below.
