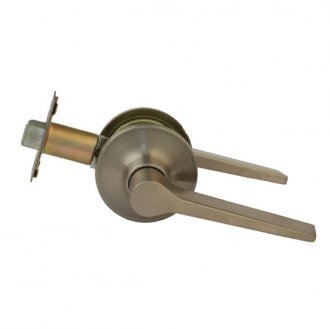

Brava Urban Passage Leverset LE603 S/Ch.

Brava Urban LE series concealed fix passage leverset.


Domestic grade passage leverset.

Passage function
Both inside and outside levers are always free.

Additional info

Tiebolt concealed fixing.

Straight lever design.

Finished in Satin Chrome

Supplied boxed with mounting hardware.

Door thickness 35-51mm
Backset adjustable 60/70mm
max. Lever / knob projection
distance may not include turnsnib 53mm
Strike 70mm x 27mm x 1.2mm
Latch adjustable 60/70mm
Latch face plate 57mm x 25mm
Door handing Non-handed levers
Rose 66.5mm
