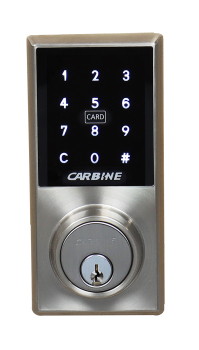

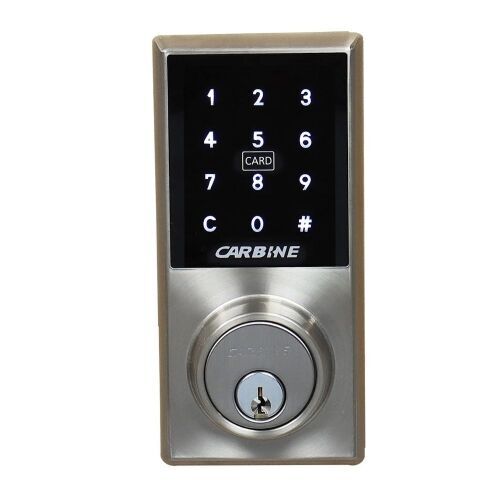

Carbine CEL2 Digital Bluetooth Deadbolt Satin Nickel

Carbine CEL2 Digital  Deadbolt Satin Nickel, Bluetooth lock



All the features of the CEL2-3IN1 standalone with the addition of Bluetooth functionality (note: RFID is not compatible with Bluetooth Deadbolt versions)

• Download the app for easy access & programming
• Can program up to 10 Bluetooth users per lock
• Electronically send access to the lock via the app
• User friendly app, tried and tested
• Recommended for medium use installations
• New stylish escutcheon with lower profile
• Improved touchscreen and motor function
• Fits in standard 54 mm lockset hole, no additional drilling required
• Fits from 35-51mm thick doors
• Touch keypad with backlight
• Entry by bluetooth app, code or key
• 1 programming code, 200 user codes
• Key override
• Codes from 4 - 8 digits
• Guiding code - enter program false numbers before true code
• Vacation mode, lock out all users
• Can be put in passage mode, hold 'set' for 1 second
• Auto lock delay timer, 5-99 seconds. Pre set at 5 seconds
• Double authorisation mode possible, card and code
• ANSI Grade 2 compliant: Mechanical cycle test - 150,000 openings, Electronic entry test - 75,000 openings, Salt spray test - 240 hours
• C4 keyway 6 pin PD style cylinder, keyed to 5 pin key
• 60-70mm adjustable latch
• Requires 4 x AA good quality alkaline batteries only
• Battery life of 5000 openings

CEL2-Brochure.pdf (6MB)

CEL2-3IN1-DB_INSTALLATION_INSTRUCTION.pdf (1MB)

CEL2-3IN1-DB_PROGRAMMING_INSTRUCTION.pdf (259kB)
