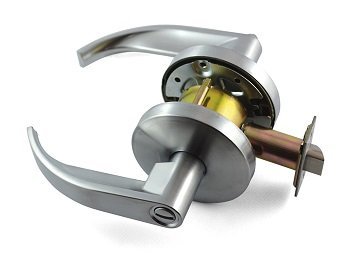

Carbine Doncaster PD7030-L1 Privacy Leverset

Carbine Doncaster PD7030-L1 Privacy Leverset

Carbine Doncaster Privacy Leverset is a commercial grade leverset that has a large 85mm rose which can cover over larger holes from previously fitted locks on your door.

L1 lever design compliant with BCA codes and AS1428.

Suitable for doors from 35mm to 50mm thick.

Fire rated for 4 hours to Tyco specifications.

Features include:

• Outside: opened by lever when unlocked. Has an emergency slot in the external handle that unlocks both levers
• Inside: opened by lever at all times. Push button locks exterior lever
• Fire rated for 4 hours to Tyco specifications
• Cylindrical fixing
• Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
• 85mm wide rose with two locating fixing holes to prevent the leverset from spinning
• Suitable for doors 35mm - 50mm in thickness extension kit is provided to make it suit the 50mm
• Concealed fixing
• Stainless steel latch bolt with a 12mm projection

Finish: Satin Chrome

Super Heavy Duty Leverset
