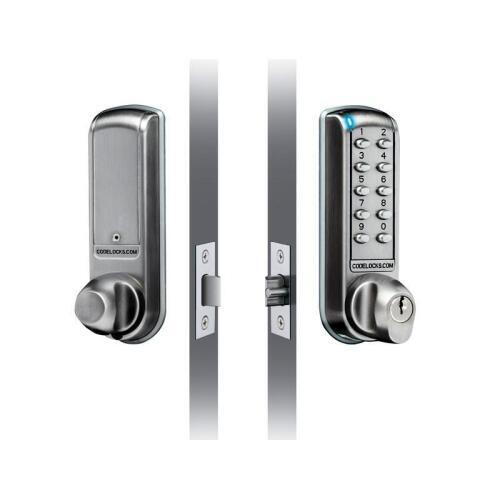

Codelocks CL2255 Electronic Tubular Mortice Latch Lock

Codelocks CL2255 Electronic Tubular Mortice Latch Lock



Fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. The CL2255 electronic lock is ideal for a wide range of light duty access control applications. The CL2255 is fully programmable on the door via the keypad with a multiple range of functions. Light duty tubular mortice latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door.

All models feature a Code Free option that can be programmed at the keypad using the Master Code. Two REM ports are provided for connection to external switches or alarm systems. Key override is a standard feature on all models within the CL2000 range.



Key Features

• Key override as standard

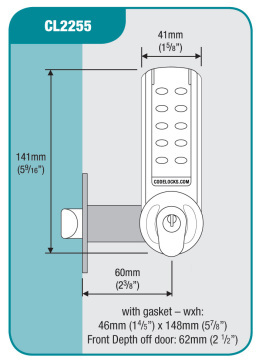

• Suitable for wooden doors between 35mm - 60mm thick
• User Codes 4, 5 or 6 digits long
• Allows up to 10 one time User Codes
• Up to 80 User Codes
• Up to 80,000 operations from 2 x 1.5v AA batteries (supplied)
• Remote release connections
• Suitable for internal and external use
• Tamper time out and low battery warning
• Available in brushed steel

CL2000.pdf (1MB)
