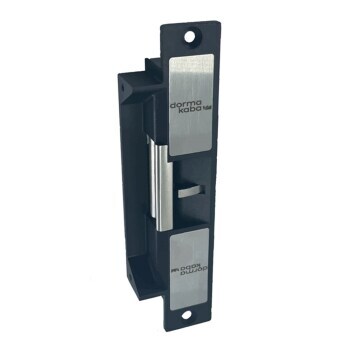

Dormakaba KES900Z Electric Strike, Fully Monitored with 35kg Pre-Load

Dormakaba KES900Z Electric Strike, Fully Monitored with 35kg Pre-Load, Zinc Finish - KES900Z

Due to the Zinc Alloy construction it is an economic solution, perfectly suited for Non fire-rated applications such as residential & aluminium fabricated solutions. The KES900Z offers dual voltage of 12VDC/24VDC and includes convenient fail safe/Fail secure function (changeable on site). Also included are pre-drilled holes for optional extension lips and installation kit for metal frame installation.



Field reversible fail-safe/fail-secure.

Operating voltage 12VDC/24VDC.

Latch & lock status monitoring.

Suits up to 18 mm latch throw.

Preload – Up to 35kg (80lbs).

Pre-drilled for optional extension lips.

Includes mounting tabs for metal frame.

Zinc Alloy construction (Non fire-rated).

Static holding force of 680kg (1500lbs).

Rated up to 500’000 cycles.

Technical Specifications

Brand    DORMAKABA

Current 600 mA @ 12 Vdc to 300 mA @ 24 Vdc

Drilled for Lip Extension Yes

Field Selectable Fail Safe/Fail Secure         Yes

Holding Strength in kg    680

Operates Under Pre-load up to   35 kg

Working Voltage               12/24 Vdc

Fire Rated            No

Material               Zinc Alloy

Locking Mode    Fail Secure/Fail Safe

Monitoring         Monitored

DHW-KES900Z-Preload-Electric-Strike-Factsheet-MAR-2021_DHW00048_final.pdf (515kB)

kes900-installation-instructions-dec2020-final-pdf-data.pdf (467kB)
