Gatemaster Auto Locking Drop Bolt





This substantial bolt on mounting dropbolt with side fixing is designed to secure double gates. Thanks to the ingenious design, the lifting plate will sit between the two gate leaves making sure the dropbolt cannot be lifted unless the gate is unlocked.

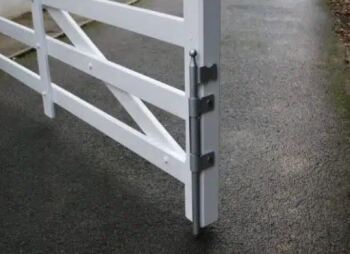

This Gatemaster ADBS dropbolt is a bolt on version to suit metal or timber gates.

• Made from solid steel
• Diameter of dropbolt: 19mm
• Dropbolt movement: 100mm
• Supplied with 95mm long coach bolts for mounting

The drop bolt is lowered and rotated so that the lifting plate folds across the edge of the first gate. The drop bolt is now locked in position when closing the second gate prevents the drop bolt being unlocked. The second gate can now be locked to the first gate with a standard gate lock. The gates can therefore not be spread apart because the drop bolt is locked in position.
