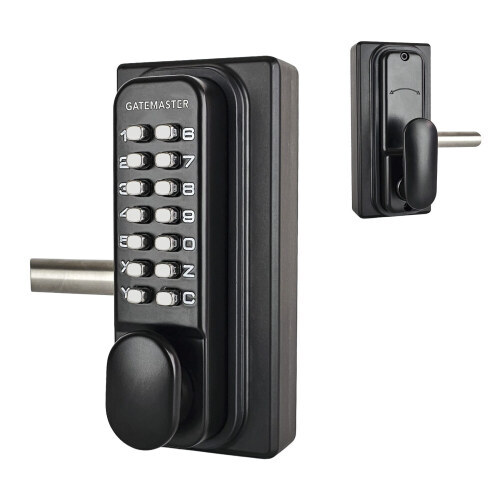

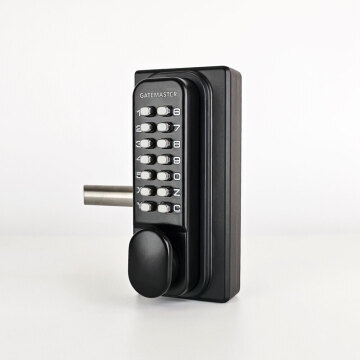

Gatemaster BDGS1030 Single sided keypad digital gate lock

Single-Sided Keypad for 10mm to 30mm metal gate frames.

 This digital gate lock combines the convenience of a mechanical keypad with the ease of installation of the Superlock range.  To fit simply drill three holes in the gate frame and bolt the lock on.

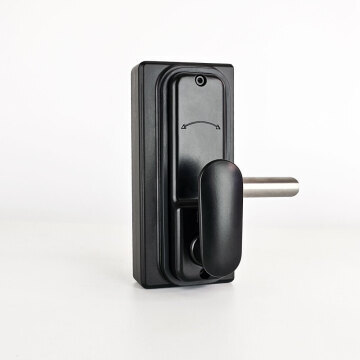

This lock is auto-latching and access can only be gained by entering the code. If you need to keep the gate open, the BDGS has a hold-back function, which is activated by the switch on the rear handle.

BDGS Product Features

No power needed – Mechanical keypad for a quick and easy install

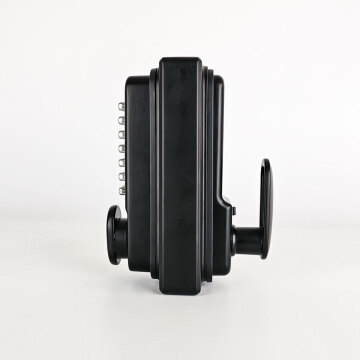

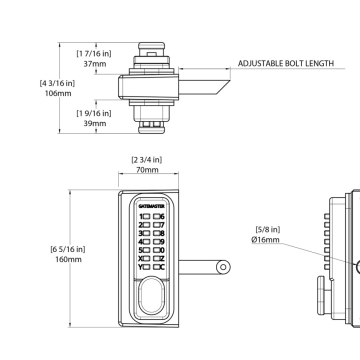

Adaptable – Slim 70mm case means this lock can suit a variety of different gate styles

Long lasting – Bolt support plate with brass bearing ensures lock will last!

Adaptable – Latchbolt can be adjusted in length and set to left hand or right hand

Auto-latching – Close the gate and the latchbolt latches into the gate frame. Latchbolt projects up to 20mm into the gate post which increases security and gives more tolerance

Keypad on one side, handle on the other – Also available with a keypad on both sides

BDGS1030 – 10-30mm gate frames (Reversible handing)

Included in the box

2.5mm hex key + 3mm hex key

M8 fixing bolts

Code changing pack

Face plate

Latchbolt

Strike plate (self-drilling fasteners)
