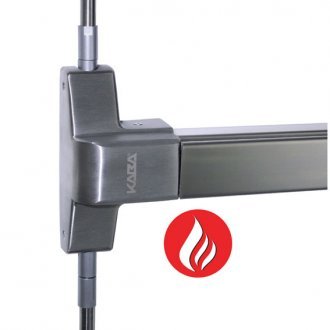

Kaba Exit Device ED2227EOF

Kaba Exit Device ED2227EOF SIL

The Kaba ED2227 exit only vertical rod type panic exit device is designed to provide emergence egress by a single action pushing motion via a modern design touch pad, fitted horizontally across the door.

The ED2227 provides secure two point latching in top and bottom of door and offers external trim options for lever / knob or pull handle and is suitable for double or single, metal or timber doors.

 Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Features:

• Horizontal fitting with 2 point vertical locking.
• Supplied in 1085 mm standard length.
  Can be field sized to 645 mm minimum length.
• Suits door thickness 35 - 50 mm as standard.
• Latch-bolt is dead-latching.
• Suits up to 2100 mm high doors.
  Extension rods available in 600 mm lengths.
• Field selectable handing.
• Fire rated.
• Finished in silver.
