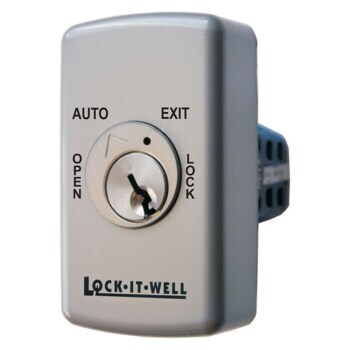

Lock-It-Well Key Switch AL54021

Lock-It-Well Key Switch AL54021

LIW Auto Door Series Key Switch, LW5 Profile Keyed to Differ, Mullion Mount, 4 Position Key Removal, 10A, 4 Pole, 2 Stage, Engraved OPEN/AUTO/EXIT/LOCK



Description

Designed for control of Automatic doors on commercial building (Can be used for other applications). The "A" series uses a unique removable cylinder enabling convenient master keying and key recombinations.



The lock cylinder also serves to lock in place a metal cover protecting the mounting screws from removal.



*This switch is suitable for BWN (SK4) series doors only.



*Mains power must only be wired by a licensed electrician.



Lock it Well key switch and cylinder only.

LW4 profile keyed to differ.

4 position switch - Open, Auto, Exit and Lock.

Suits BWN (SK4) series doors.

Compatible to most restricted keying systems.

Designed for Automatic door mullion mounting.

Key indication with unique removable cylinder with 1.5 mm allan screw.

Lock cylinder also serves to lock in place a metal cover protecting the mounting screws.

Key removal in 4 positions with key indication.

Supplied with 2 keys.

Technical Specifications

Brand    LOCK IT WELL

Key Profile           LW4

Current Rating   10 A at 240 Vac, 6 A at 24 Vdc

 Keyed to Differ

Number of Positions       4
