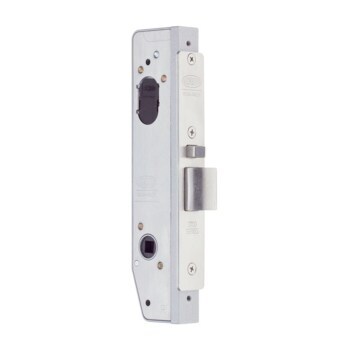

LOCKWOOD 5782 UNIVERSAL PRIMARY LOCK 30MM BACKSET

LOCKWOOD 5782 UNIVERSAL PRIMARY LOCK 30MM BACKSET



Description

• Lockwood Selector® 5782 universal 30 mm backset mortice lock.
• All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.
• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• 30 mm backset as standard, 23, 25.4 and 38 mm available upon request.
• Suits metal door thickness 35-50 mm.
• 15 mm stainless steel reversible latch bolt.
• Supplied less cylinder.
• Supplied with Selector® 'V' cam.
• Compatible to most restricted keying systems.
• Finished in stainless steel.

Technical Specifications

Brand    LOCKWOOD

Anti-lockout Function     Yes

Compatible With Most Restricted Keying Systems              Yes

Finish    Satin Stainless Steel

Holdback Function Built-in            Yes

Lock Grade          Commercial

Lock Pitch In mm              89.9

Suits Door Thickness       32 mm to 50 mm

Backset 30 mm

Fire Rated            No

Face Plate Length    156mm

Face Plate Thickness    2.5mm

Face Plate Width 25mm

Handing               Reversible

Mortice Lock Case Depth  47mm

Mortice Lock Case Height     194.5mm

Mortice Lock Case Thickness    20mm

Spindle Type       7.6mm Square Split Spindle

Uses Cylinder/Plug Type 570 Oval
