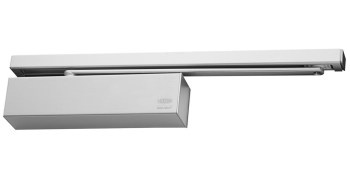

Lockwood Door Closer 2616DA SSS
Suits doors up to 120kg.
The Lockwood 2616 is light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Secure SSL Checkout | Trusted Australian Business
Estimate Shipping
Deliver To:
Product Details
Description
Lockwood Door Closer 2616DA SSS
Suits doors up to 120kg.
The Lockwood 2616 is light to open, but its adjustable closing force is high enough for heavy duty applications. One model (2616) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Features:
- Power adjustable EN1-6.
- Adjustable back-check.
- Adjustable delayed action.
- Non-handed suits "push or pull" side of door.
- Hold-open (when fitted) can be set to any angle up to 120° of opening.
- Formed metal cover.
- Fire rated.
- AS1428.1 compliant.
- Finished in satin stainless steel.
|
Recommended Door Width |
Door Weight (kg) Max |
Closer PowerSize |
ClosingTorque (Nm) |
|
750 |
20 |
1 |
9 - <13 |
|
850 |
40 |
2 |
13 - <18 |
|
950 |
60 |
3 |
18 - <26 |
|
1100 |
80 |
4 |
26 - <37 |
|
1250 |
100 |
5 |
37 - <54 |
|
1400 |
120 |
6 |
54 - <87 |
|
1600 |
160 |
7 |
87 - <140 |
