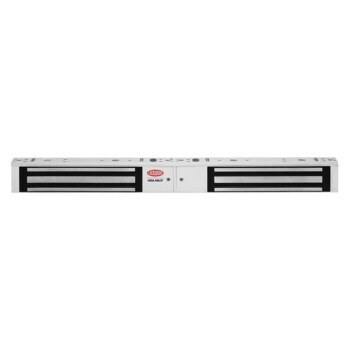

Lockwood Padde EMZ4 280kg Double Electro Magnetic Lock, Fully Monitored

Lockwood Padde EMZ4 280kg Double Electro Magnetic Lock, Fully Monitored (EMZ4-DM)

Product Code: PA770300112



Description

Padde Z series double door monitored electromagnetic lock.



With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.



Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) .



• Padde Z4 double door magnetic lock.
• 476 mm L x 48 mm H x 27 mm D.
• Holding force 250kg-280kg each door.
• Dual voltage 12 or 24Vdc field selectable.
• Current draw 900mA @ 12vdc & 450mA @24vdc.
• Suitable for double doors.
• Monitoring hall/bond (door locked) and reed switch (door position).
• Fire rated to 4 hours.
• L and Z brackets are available PA770300902.
• Glass door "U" bracket are available PA770300905.

Technical Specifications

Brand    PADDE

Current 900 mA @ 12 Vdc to 450 mA @ 24 Vdc

Finish    Satin Chrome

Holding Strength in kg    280

Working Voltage               12/24 Vdc

Fire Rated            Yes, 4 Hours

Single Or Double Door Maglock?               Double

Monitoring         Monitored
