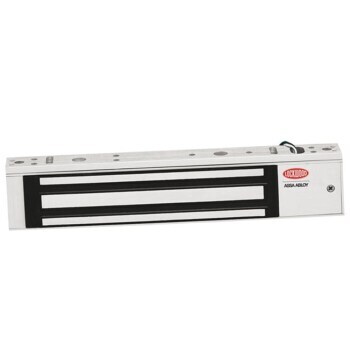

Lockwood Padde EMZ4 280kg Single Electro Magnetic Lock, Fully Monitored

Lockwood Padde EMZ4 280kg Single Electro Magnetic Lock, Fully Monitored (EMZ4-SM)



Padde Z series single monitored electromagnetic lock.



Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) .



• Padde Z4 single mini magnetic lock.
• 238 mm L x 48 mm H x 27 mm D.
• Holding force 250kg-280kg.
• Dual voltage 12 or 24Vdc field selectable.
• Current draw 450mA @ 12vdc & 225mA @24vdc.
• Suitable for single doors.
• Monitoring hall/bond (door locked) and reed switch (door position).
• Fire rated to 4 hours.
• L and Z brackets are available PA770300901.
• Glass door "U" bracket are available PA770300905.



Technical Specifications

• Brand    PADDE
• Current 450 mA @ 12 Vdc, 225 mA @ 24 Vdc
• Finish    Satin Chrome
• Holding Strength in kg    280
• Working Voltage               12/24 Vdc
• Fire Rated            Yes, 4 Hours
• Single Or Double Door Maglock?               Single
• Monitoring         Monitored
