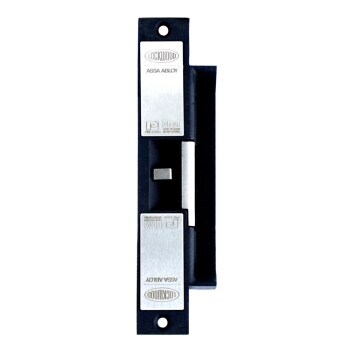

Lockwood Padde ES9100 electric strike



Lockwood Padde ES9100 12VDC to 30VDC Electric Strike, 25kg Pre-Load, Fully Monitored Multi-Function with Reed Switch, Field Changeable Fail Secure, 4 Hour Fire Rated - ES9100

Lockwood Padde ES9100 electric strike provides all the key features and specifications of the ES9000 but with the added inclusion of Door Position Monitoring (DPS) via an integrated Reed Switch.



The Lockwood Padde ES9100 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper.

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

 4 hour fire rating. And Australian Government listed.

 The ES9000 is designed, developed and manufactured in Melbourne.

ES9000 - Pre-load (side pressure) testing

The ES9000 overcomes the real life issue of side pressure, commonly known as pre-load, easily opening with up to 25kg of pre-load applied to the strike. Pre-load is commonly caused by pulling on a door before it unlocks, by the weight of warped or drooping doors or by differential air pressure created by heating and cooling systems.

• Operates under pre load up to 25kg.
• Door Position Monitoring output.
• Lock Status and Latch Position Monitoring output.
• Easy field selectable fail safe/fail secure.
• Multi voltage 10-30VDC 250mA @ 12VDC, 130mA @ 24VDC.
• 1300kg holding force.
• 2.5 million cycles endurance rating.
• Latch keeper is significantly quieter in operation.
• Suitable for use with 15 mm latch and 3 mm door gap.
• Weather resistant (IP54).
• Pre-Drilled for extension lips.
• Mounting tabs included.
• Non handed.
• 5 Year Tricare warranty (Padde Series).
• Built in protection diode.
• Solid stainless steel construction.
• Fire rated up to 4 hours.
• S8 & D8 approvals to Australian Lock Standard (AS4145.2.2008).

Note: all ES9100 series electric strikes are supplied in Fail Safe (PTL) configuration.

Technical Specifications

Brand	PADDE
Current	250 mA @ 12 Vdc to 130 mA @ 24 Vdc
Drilled for Lip Extension	Yes
Field Selectable Fail Safe/Fail Secure	Yes
Holding Strength in kg	1300
IP Rating	IP54
Operates Under Pre-load up to	25 kg
Working Voltage	10 Vdc to 30 Vdc
Fire Rated	Yes, 4 hours
Locking Mode	Fail Secure/Fail Safe
Monitoring	Monitored



LW-ES9100-Electric-Strike-Datasheet.pdf (84kB)
