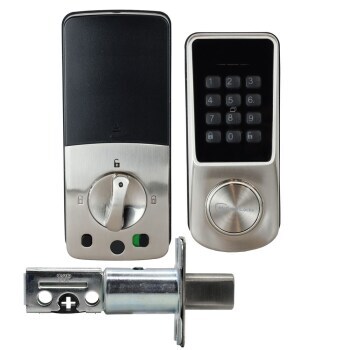

McGrath Locks Ashgrove Smart Deadbolt, Raised Button with Braille, Satin Nickel Finish with 60/70mm Adjustable Bolt



McGrath Locks Ashgrove Smart Deadbolt, Raised Button with Braille, Satin Nickel Finish with 60/70mm Adjustable Bolt



Description:

The Ashgrove by McGrath Locks is a sleek and stylish deadbolt designed and developed for the Australian market. Featuring a tempered glass screen with braille raised buttons to improve usability in all environments, this 4 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.

Utilising the powerful McGrath Locks App, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through PIN code, RFID credential and eKeys managed via BLE and mechanical key override. The Ashgrove is supplied with a door sensor for optional door position monitoring and can be connected to a gateway giving you the ability to unlock your door from anywhere in the world using the McGrath Locks App.

The Ashgrove is equipped to suit the most demanding of applications and has been constructed using fire resistant materials including an IP65 weather rating on the outside assembly. It is supplied with a stainless steel anti-saw adjustable backset bolt.

• Lock functions and access easily managed via McGrath Locks App.
• Enrol PIN Codes, RFID credentials and send eKeys to your family and visitors.
• Passage Mode can be used to leave your door open when required.
• Anti peep code function stops unauthorised people seeing the correct code inputted.
• Incorrect attempt lockout.
• Privacy switch on internal lock assembly locks out all access except Administrator and override key.
• Reset button can be disabled in app for additional security.
• Audit trail within app to see who accessed your door and when.
• Supplied with door sensor for optional door open monitoring.
• Low battery alert (within app and audible at the lock).
• 4 x AA Alkaline Batteries (not included).
• Mechanical key override with rekeyable PD cylinder.
• USB-C (Power bank) emergency opening.
• Tempered Glass Screen for extra durability.
• Supplied with an anti-saw 304 stainless steel adjustable backset bolt.
• Outside lock case dimensions 165 (H) x 71 (W) x 28 (D) mm.
• Inside lock case dimensions 166.5 (H) x 73.5 (W) x 38.7 mm (D) includes turn knob.
• Finished in Satin Nickel.
• Australian Registered Design # 202513992.

ASHGROVE_A4_Brochure_WEB.pdf (382kB)

ASHGROVE_A4_Datasheet_WEB.pdf (121kB)

ASHGROVE_User_Guide_WEB.pdf (2MB)
