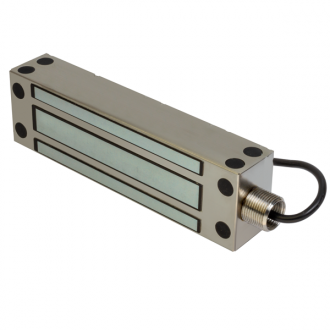

NEPTUNE Waterproof Maglock Single Door 500kg, Monitored



Maglock for doors or gates up to 500kg holding force.

Neptune waterproof monitored single door mag lock.

Suitable for outdoor use.

Features:

• Single door monitored magnetic lock.
• Dual voltage 12vdc @ 460mA, 24vdc @ 220mA.
• Monitored, door status sensor.
• Horizontal or vertical fixings.
• Fixing hardware included.
• Holding force up to 500kgs.
• Operating temperature -10°C ~ 70°C.
• Stainless steel housing.
• Zinc plated electromagnetic body.
• Magnet size 240 (L) x 63.5 (H) x 43 mm (D).
• Armature plate 185 (L) x 61 (H) x 16 mm (D).
• Weight 4.9kg.
• Protection IP67.
• L or Z mounting brackets are also available in accessories below



NEPTUNE_500-waterproof-Series-Single-Door-Maglocks_UserManual_LR_V1_edit.pdf (343kB)
