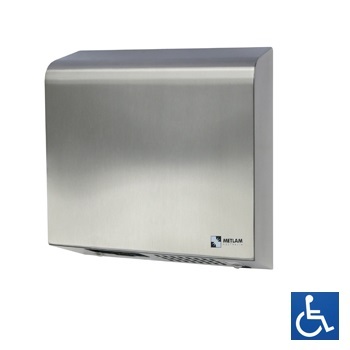

Metlam Slimline Auto Hand Dryer ML_100N_SS

Metlam Slimline Auto Hand Dryer

Suitable for a variety of applications including: Commercial, industrial, education, healthcare, public, hospitality & leisure facilities. Accessible compliant when installed in accordance with AS1428.1. guidelines.

Material	1.2mm #304 Satin Stainless Steel
Motor	1/4 HP, 7500 rpm, Brush Type, Dual Ball Bearings Motor Thermal Protection- Auto Resetting Thermostat turns off at 105°C
Operating Voltage	230-240 Vac, 50/60Hz, 2200-2400W
Sound Level	70db (+/- 3)
Drying Time	Less than 15 seconds
DP Rating	IPX 1
Heather Element	2200W @ 240Vac
Heater	Auto Resetting Thermostat turns unit off at 87°C Thermal fuse cuts unit off at 141°C
Warm Air	Output: 314.5m3/h (185 CFM)
	Temp: Ambient +20°C
Protection	60 sec power cut off, auto reset
Timing	2 sec delay turn off after last read
Circuit Op. Sensor Range	Infrared Automatic, self adjusting Adjustable, standard 18cm ± 2cm
Case Security	2 SS theft resistant hex drive screws (hex key supplied)
Net Weight	4.5kg
Dimensions	268mmW x 283mmH x 100mmD
Warranty	5 Year Warranty (3 Years Parts and Labour + 2 Years Parts only)
Note	Unit can be hard wired by electrician or used with cord and plug provided
	* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.



Stainless steel cleaning and maintenance:





ML_100N_SS-Installation-Guidelines-2019.pdf (374kB)

EFFECTIVE-MEANS-OF-CLEANING-Hand-Dryers.pdf (256kB)
