Carbine Electronic Touch pad RFID leverset

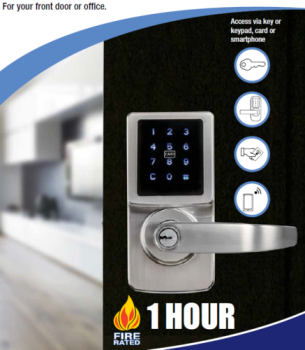

Carbine Electronic Touch Pad RFID Leverset

Carbine Digital Locksets are a next generation product. Heres why: Incorporating a full lever handle on the inside rather than just a small knob, it is user-friendly. It is also the first digital lockset to come with its own stainless steel fitting plate. In this way you can easily retrofit a standard lockset. The existing hole in the door will be covered without the installer having to custom-make a fitting plate. In addition, this lock is fire-rated!

Carbine Digital locks are tried and tested quality security locks.

Features include:

• Leverset model fits in standard 54 mm lockset hole, no additional drilling required
• Touch keypad with backlight
• Key override
• RFID card entry
• Works with most NFC enabled smart phones with Mifare compatibility
• Access codes, RFID cards & phones are programmed through the lock
• 1 programming code, and up to 25 user codes and 25 RFID cards
• Codes from 4 - 8 digits
• Guiding code, ability to enter program false numbers before true code
• Vacation mode, lock out all users
• Auto lock delay timer, 5 -99 seconds. Pre set at 5 seconds
• Double authorization mode possible, card and code
• ANSI G2
• C4 keyway 6 pin cylinder , keyed to 5 pin key
• Suits door thicknesses of 35mm to 51mm
• Leverset model has 60-70mm adjustable SS latch
• Requires 4 AA batteries, for best results we recommend you use only Duracell Procell batteries
• Fire tested for 1 hour
• RFID Cards not supplied with lock and can be purchased from accessories below



CEL-3IN1-Installation.pdf (6MB)

CEL-RFID-Applications.docx (132kB)
