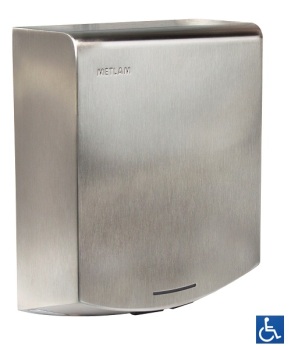

Metlam Eclipse Auto Hand Dryer Stainless Steel ML_ECLIPSE05_SS

Metlam Eclipse Auto Hand Dryer Stainless Steel

Metlam Eclipse Auto Operation Hand Dryer sets the new standard in slim, compact Hand Dryers. Fast, efficient, functional and cost-effective, Metlam Eclipse Hand Dryer comes in both Satin Stainless Steel and White Powder Coat Steel. Metlam Eclipse is the perfect choice for commercial washroom projects where aesthetics and quality are of paramount importance.

Suitable for a variety of applications including: Commercial, industrial, education, healthcare, public, hospitality & leisure facilities. Accessible compliant when installed in accordance with AS1428.1. guidelines.

Material	1.2mm #304 Satin Stainless Steel
Features	Patented high-flow dual air outlets
Motor	250-500W Brush Type: Dual Ball Bearings 16,000-29,000 RPM 95°C auto reset overload
Power Use	220-240V, 50Hz, 1000W
Sound Level	76.2db (+/- 3)
Drying time	Less than 15 seconds
DP Rating	IP 24
Element	325 - 500W, adjustable
Heater	Auto resetting thermostat turns unit off at 85°C
Warm Air	Speed: 95-115m/s (adjustable)
	Temp: Ambient +25°C
Protection	60 sec power cut off, auto reset
Sensor/Range	Infrared Automatic - 152mm +/-20mm preset Blue LED indicates operation/range
Case Security	2 SS theft resistant hex drive screws (hex key supplied)
Net Weight	4.2kg
Dimensions	220mmW x 287.9mmH x 100mmD
Warranty	5 Year Warranty (3 Years Parts and Labour + 2 Years Parts only)
Note	Unit can be hard wired by electrician or used with cord and plug provided
	* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.



Stainless steel cleaning and maintenance:



Eclipse-Hand-Dryer-Operating-Manual-March-2019.pdf (520kB)

Metlam-Eclipse-Hand-Dryer-Flyer.pdf (1MB)

EFFECTIVE-MEANS-OF-CLEANING-Hand-Dryers.pdf (256kB)
