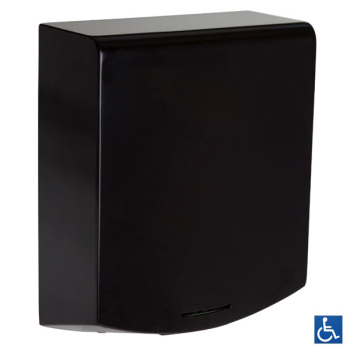

Metlam Eclipse Designer Auto Hand Dryer ML_ECLIPSE_DESIGNER

Metlam Eclipse Designer Hand Dryer

Suitable for a variety of applications including: Commercial, industrial, education, healthcare, public, hospitality & leisure facilities. Accessible compliant when installed in accordance with AS1428.1. guidelines.

Material	1.2mm Designer Matte Black Powder Coat Steel
Features	Patented high-flow dual air outlets
Motor	250-500W Brush Type: Dual Ball Bearings 16,000-29,000 RPM 95°C auto reset overload
Power Use	220-240V, 50Hz, 1000W
Sound Level	75db (+/- 3)
Drying time	Less than 15 seconds
DP Rating	IP 24
Element	325 - 500W, adjustable
Heater	Auto resetting thermostat turns unit off at 85°C
Warm Air	Speed: 95-115m/s (adjustable)
	Temp: Ambient +25°C
Protection	60 sec power cut off, auto reset
Sensor/Range	Infrared Automatic - 152mm +/-20mm preset Blue LED indicates operation/range
Case Security	2 SS theft resistant hex drive screws (hex key supplied)
Net Weight	4.2kg
Dimensions	220mmW x 287.9mmH x 100mmD
Warranty	5 Year Warranty (3 Years Parts and Labour + 2 Years Parts only)
Note	Unit can be hard wired by electrician or used with cord and plug provided
	* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.



Eclipse-Hand-Dryer-Operating-Manual-March-2019.pdf (520kB)

Metlam-Eclipse-Hand-Dryer-Flyer.pdf (1MB)

EFFECTIVE-MEANS-OF-CLEANING-Hand-Dryers.pdf (256kB)
